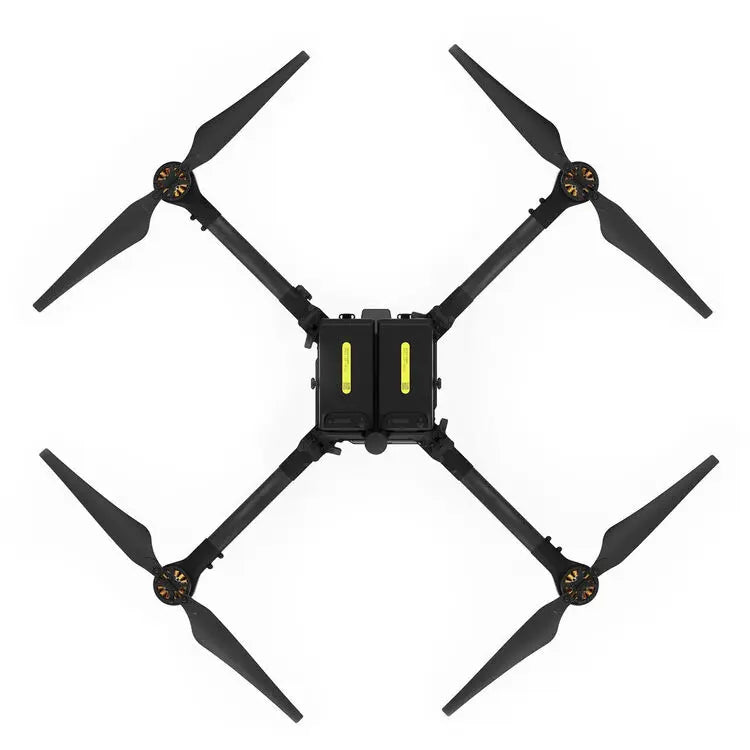

Freefly Astro Map + Pilot Pro (Herelink RF) (No Charger or SL8-Air Batteries) - Dronez Technologies

Freefly Astro Map + Pilot Pro (Herelink RF) (No Charger or SL8-Air Batteries)

Name: Freefly Astro Map + Pilot Pro (Herelink RF) (No Charger or SL8-Air Batteries)
Brand: Freefly
SKU: 950-00106-02
Price: 14999.00 USD
Availability: InStock

$14,999.00

$26,000.00

1 in stock

For immediate assistance with specifications, deployment guidance, or enterprise orders, call us at (850) 396-2784 and speak directly with a solutions specialist.

Freefly Astro Map + Pilot Pro (Herelink RF) (No Charger or SL8-Air Batteries)

$14,999.00

$26,000.00

With this payload, the Astro can achieve between 25 to 32 minutes of flight time. You can customize tasks by employing your own code inside the Astro via MAVSDK, as well as using it to send recorded data to the cloud for processing into your workflow via integrated LTE connectivity (the United States only). The code within the drone is operated by Skynode, which powers the Astro with a Linux-based mission computer.

Precision Mapping with RTK

Utilizing the u-blox (F9P) GNSS module and support for L1/L2 GPS, GLONASS, Beidou, and Galileo satellite constellations, the built-in multiband RTK system of the Astro can remain steady at various heights and positions. This allows for centimeter-level mapping precision.

Mapping Payload

Preinstalled into the payload is a Sony a7R IVA camera body with 61MP image quality and a Sigma 24mm f3.5 lens. A USB Type-C thumb drive records the images captured in 25 to 32 minutes of flight time. The native mount on the gimbal provides both power and data communication from the camera to a ground station controller via an LTE network. This allows you to control the camera and gimbal while previewing images from the ground. It is required that your drone have the Smart Dovetail attached to support the device.

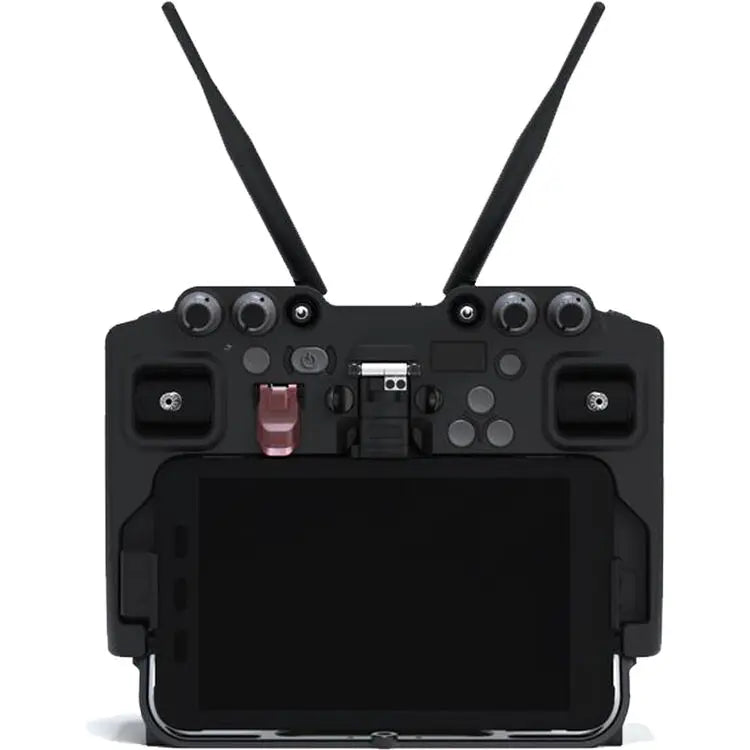

Pilot Pro Controller

Pilot the Astro and get the perfect shot by using the Pilot Pro's high-resolution rockers for precision camera and gimbal control. Twin sticks and other manual controls let you pilot the drone and access a host of the drone's functions. A preinstalled and customized 8" Samsung ActiveTab3 tablet rounds out the Pilot Pro's controls by giving you a highly detailed live stream from the drone, in addition to essential telemetry data.

Additional Pilot Pro Features

2.4 GHz Herelink RF transmitter
Modular design that will accept future transmitter options
Internal battery with hot-swap compatible external power inputs
Emergency kill switch
Realtime drone and gimbal speed limits

Travel Case and Kit Accessories

A protective travel case is included and features a custom-cut foam insert, with sections for the Astro (equipped with landing gear and props) and a variety of accessories. The foam helps with organization and protection, capable of handling drops up to 3.3'. The case is also submersible and dust-tight, meeting the MIL-STD 810G standard. For added convenience and peace of mind, the case is airline checkable.

Additional Features

Up to 34 mph flight speed
Wi-Fi and Bluetooth connectivity
Vibration-isolated payload attachment
Manual, Altitude Hold, Position Hold, Return, and Autonomous Mission flight modes

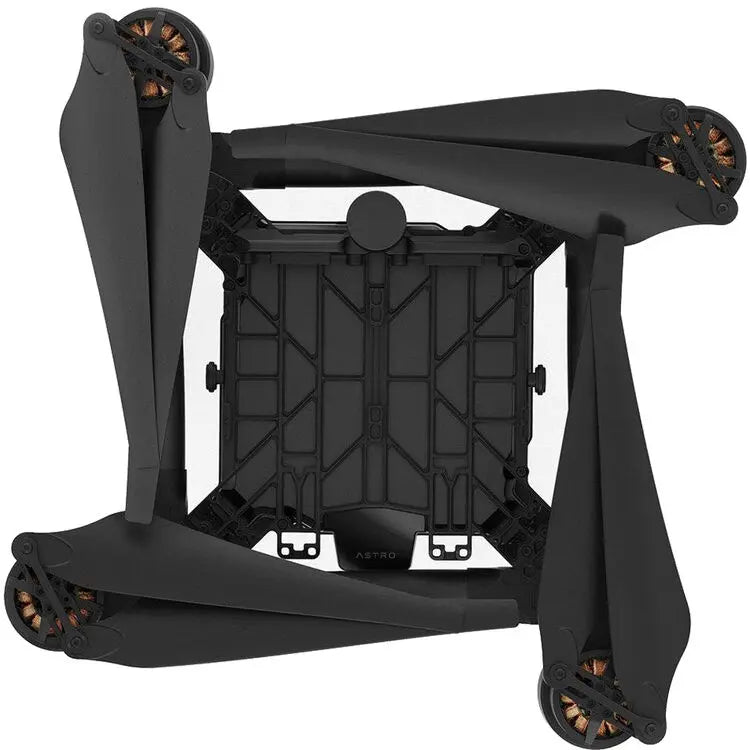

Astro booms fold up to half the diameter of the body for easier storage and transport
Connectivity to Auterion Mission Control and Auterion Suite

IN THE BOX

FREEFLY Astro Base Industrial Drone with Mapping Payload & Pilot Pro Controller
Mapping Gimbal
Sony a7R IVA Camera Body (Preinstalled in Gimbal)
Sigma 24mm f/3.5 DG DN Contemporary Lens (Sony E)
USB-C Thumb Drive
Pilot Pro Controller
Travel Case with Foam Insert
Custom Padded Neck Strap
5 x Propeller
Allen Driver (1.5mm)
Allen Driver (2mm)
Allen Driver (2.5mm)
4 x Extra Isolator
2 x Rubber Hole Grommet
